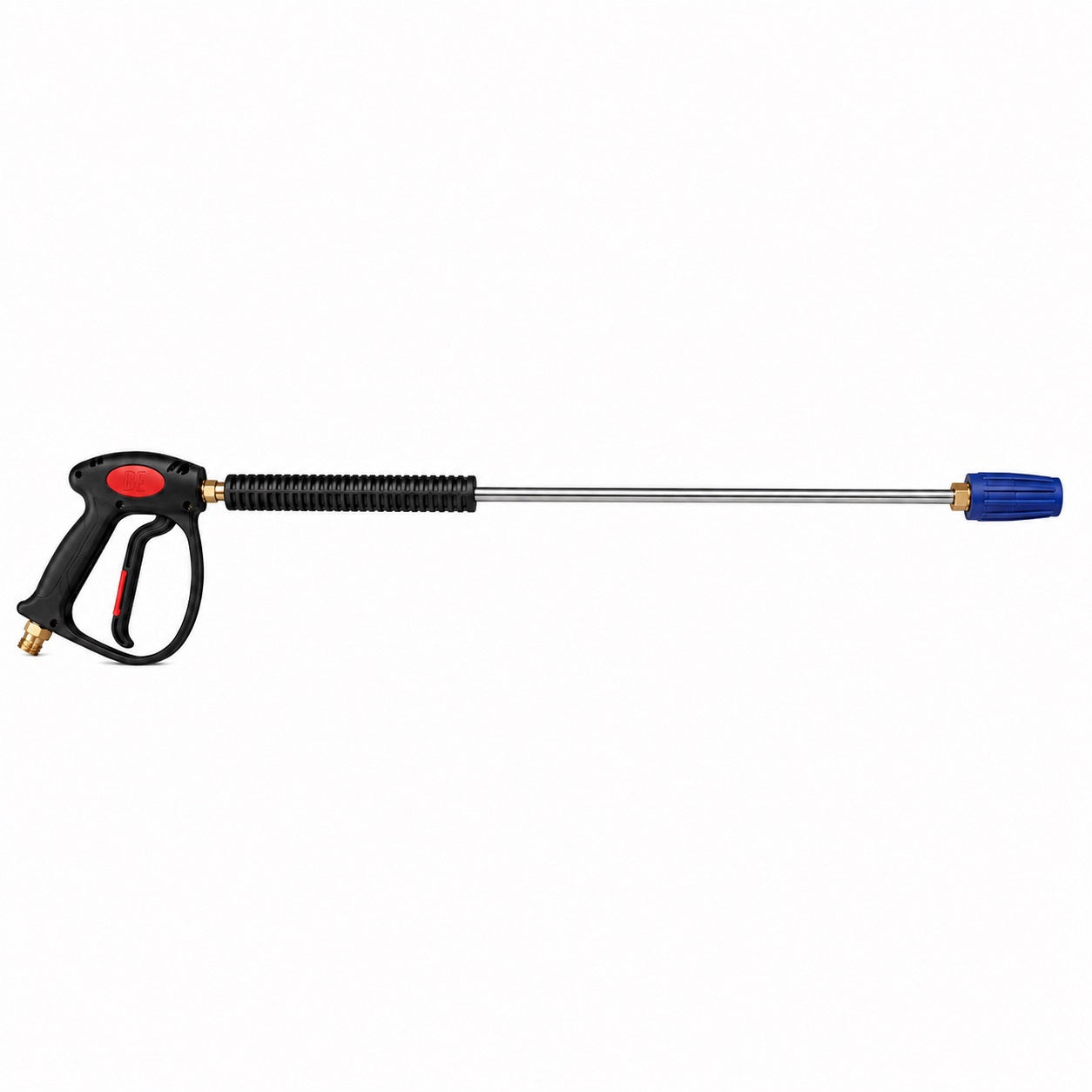

Ask about 250 Bar Turbo Lance Assembly | UR25 Rotating Nozzle
TECHNICAL SPECIFICATIONS
| Max Pressure | 250 bar |
| Working Pressure | 80-250 bar |
| Flow Rate | 6-29 L/min |
| Max Temperature | 100 C |
| Gun Model | MV925 Professional Trigger Gun |
| Gun Inlet | M22 Male |
| Gun Outlet | 1/4 BSP Female |
| Lance Length | 900 mm |
| Lance Finish | Zinc plated |
| Nozzle Model | PA UR25 |
| Nozzle Type | Rotating turbo nozzle |
| Nozzle Body | Brass |
| Internal Components | Ceramic |
| Protection | Rubber protection sheath |
| Applications | Agricultural equipment cleaning, concrete cleaning, machinery washdown, industrial washdown, construction equipment cleaning, workshop cleaning |
| Compatibility | Suitable for professional pressure washer systems operating between 80-250 bar and 6-29 L/min |
| Standard Equipment | MV925 professional trigger gun, 900 mm straight lance assembly, PA UR25 rotating turbo nozzle |
| Operating Note | Rotating turbo nozzles generate increased cleaning impact compared to standard fan nozzles. Care should be taken on sensitive surfaces and coatings. |
FEATURES
-
The rotating turbo nozzle uses an internal turbine mechanism to generate a rotating high-impact water jet during operation. The rotating jet pattern combines concentrated cleaning force with increased cleaning coverage compared to fixed fan nozzle configurations.
-
Professional trigger gun fitted with brass and stainless-steel internal components specified for commercial pressure washer equipment. The trigger assembly is configured for professional operating environments requiring durable high-pressure control components.
-
Zinc-plated straight lance assembly supporting controlled operation and increased working reach during cleaning applications. The extended lance configuration assists operator access when cleaning machinery, equipment, and large surface areas.
-
Ceramic internal seat and nozzle components supporting reduced internal wear during prolonged operation. The ceramic construction assists long-term resistance to abrasion within high-pressure water flow conditions.
-
Protective outer sheath fitted to the turbo nozzle body assisting impact protection during operation and handling. The outer cover helps reduce direct impact damage during routine professional use.
-
Specified for professional pressure washer systems operating up to 250 bar and 29 L/min. Suitable for agricultural, commercial, industrial, and machinery cleaning applications requiring increased cleaning intensity.
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
