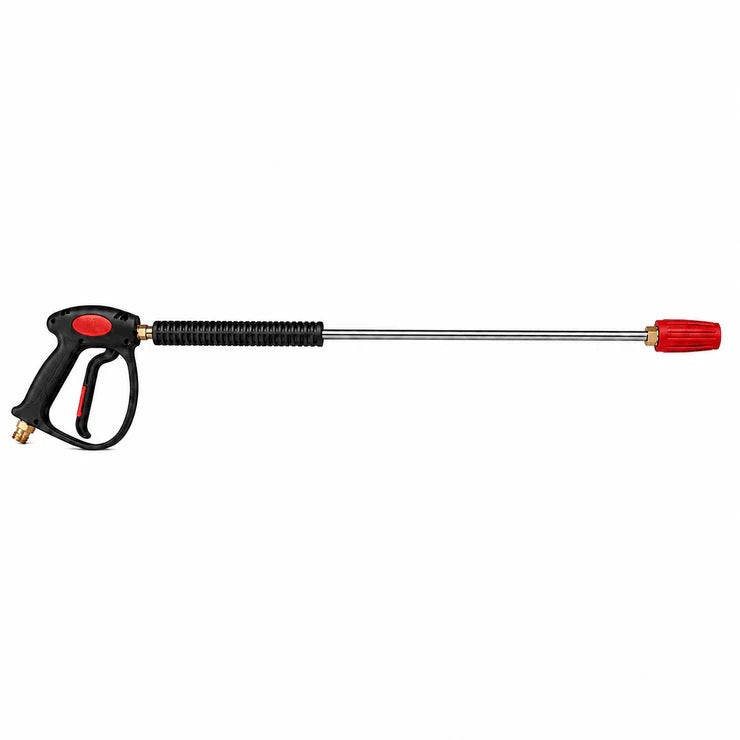

Ask about 350 Bar Turbo Lance Assembly | UR35 Rotating Nozzle
TECHNICAL SPECIFICATIONS
| Rated Pressure | 350 bar |
| Working Pressure | 180-310 bar |
| Max Flow Rate | 34 L/min |
| Minimum Flow Rate | 9.1 L/min |
| Max Temperature | 100 C |
| Gun Model | ML955 Professional Trigger Gun |
| Gun Max Flow | 40 L/min |
| Gun Inlet | M22 Male |
| Gun Outlet | 1/4 BSP Female |
| Gun Temperature Rating | 160 C |
| Internal Components | Brass and stainless steel |
| Grip Type | Soft-touch rubber grip |
| Lance Length | 900 mm |
| Lance Finish | Zinc plated |
| Nozzle Model | PA UR32 |
| Nozzle Type | Rotating turbo nozzle |
| Nozzle Body | Brass |
| Nozzle Inlet | 1/4 BSP Female |
| Internal Seat and Nozzle | Ceramic |
| Protection | Rubber protection sheath |
| Pressure Type | Fixed pressure |
| Applications | Agricultural equipment cleaning, machinery washdown, construction equipment cleaning, industrial washdown, workshop cleaning, heavy contamination removal |
| Compatibility | Suitable for professional pressure washer systems operating between 180-310 bar and 9.1-34 L/min |
| Operating Note | Rotating turbo nozzles generate increased cleaning impact compared to standard fan nozzles. Care should be taken on sensitive surfaces and coatings. Inspect nozzle assemblies and high-pressure components regularly during operation. |
FEATURES
-
The rotating turbo nozzle uses an advanced internal turbine mechanism to generate a rotating high-impact water jet during operation. The rotating jet pattern combines concentrated cleaning force with increased cleaning coverage compared to fixed fan nozzle configurations.
-
The patented internal turbine and spring mechanism maintains consistent rotational speed and continuous contact between the internal nozzle and ceramic seat during operation. This configuration assists cleaning consistency, reduces internal component wear, and supports operation in multiple working positions, including upward-facing applications.
-
Professional trigger gun fitted with brass and stainless-steel internal components specified for commercial pressure washer equipment. The trigger assembly incorporates a soft-touch rubber grip supporting improved handling during prolonged operation.
-
Zinc-plated straight lance assembly supporting controlled operation and increased working reach during cleaning applications. The extended lance configuration assists operator access when cleaning machinery, equipment, and large surface areas.
-
Ceramic internal seat and nozzle components supporting reduced internal wear during prolonged operation. The ceramic construction assists long-term resistance to abrasion within high-pressure water flow conditions.
-
Protective outer sheath fitted to the turbo nozzle body assisting impact protection during operation and handling. The outer cover helps reduce direct impact damage during routine professional use.
-
Specified for professional pressure washer systems operating between 180–310 bar and 9.1–34 L/min. Suitable for agricultural, commercial, industrial, construction, and machinery cleaning applications requiring increased cleaning intensity.
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
