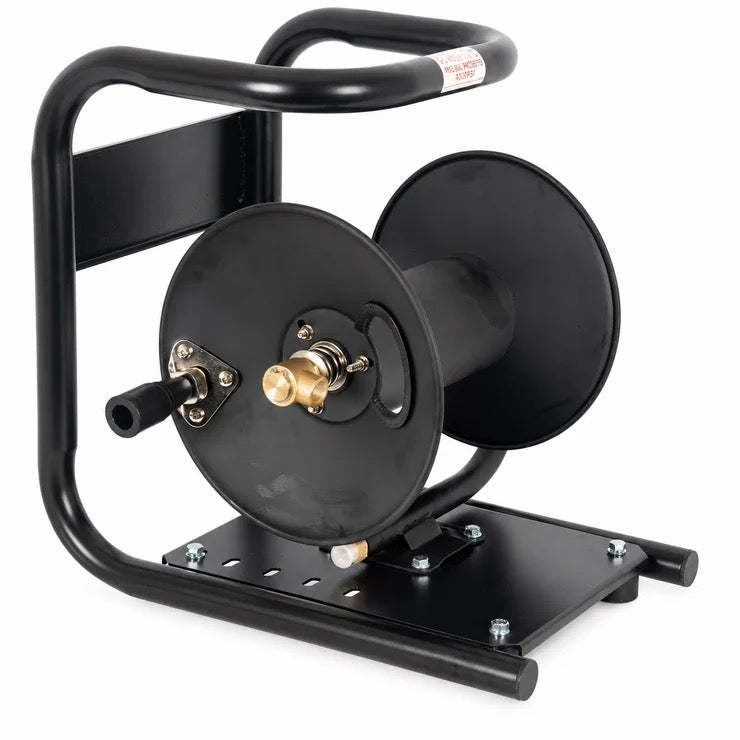

Frame Mounted Hose Reel | 30m Capacity
Frame Mounted Hose Reel | 30m Capacity

Frame Mounted Hose Reel | 30m Capacity

SKU : HR-30M-FRAME

£181.90 inc. VAT

£151.58 ex. VAT

Professional frame-mounted hose reel assembly with powder-coated carry frame and brass swivel. Suitable for pressure washer systems using up to 30m of 3/8" high-pressure hose.
Dispatch: 3–5 working days to allow for order preparation and final inspection. Finance options available for eligible UK customers.
Frame Mounted Hose Reel | 30m Capacity

Frame Mounted Hose Reel | 30m Capacity

£181.90

Ask about Frame Mounted Hose Reel | 30m Capacity

SPECIFICATIONS FEATURES PRODUCT OVERVIEW DELIVERY & RETURNS

TECHNICAL SPECIFICATIONS

Hose Capacity 30 Metres of 3/8 Inch Hose
Maximum Working Pressure 275 Bar
Maximum Temperature 60°C
Frame Construction Powder-Coated Steel
Reel Construction Painted Steel
Swivel Type Brass Swivel
Inlet Connection 3/8 Inch BSP Male
Outlet Connection 3/8 Inch BSP Male
Hose Included No
Dimensions 455 × 270 × 320 mm
Weight 10.5 kg

FEATURES

  • Manufactured from painted steel for durability and long service life in professional pressure washing environments.
  • Incorporates a brass swivel assembly to support smooth hose operation during winding and unwinding while helping to reduce hose twist.
  • Fitted with a 3/8" BSP male inlet and 3/8" BSP female outlet connection for compatibility with a wide range of pressure washer systems and accessories.
  • Suitable for pressure washer systems operating at pressures up to 275 bar and temperatures up to 60°C

Product Overview

The Foreman Frame Mounted Hose Reel is specified for professional pressure washer installations requiring organised hose storage, protection, and deployment.
Constructed with a powder-coated carry frame and painted steel hose reel, the assembly is designed for routine use in commercial, agricultural, industrial, and workshop environments.
The reel supports up to 30m of 3/8" high-pressure hose and incorporates a brass swivel assembly to maintain reliable hose operation during winding and unwinding.
Supplied without hose, the reel can be configured to suit a wide range of pressure washer systems and installation requirements.

DELIVERY & RETURNS

Complete machines are delivered palletised and partially assembled.

Each machine undergoes pre-delivery inspection prior to dispatch.

Delivery requires site access suitable for pallet handling.

Refer to the Delivery & Returns policy for full details.
