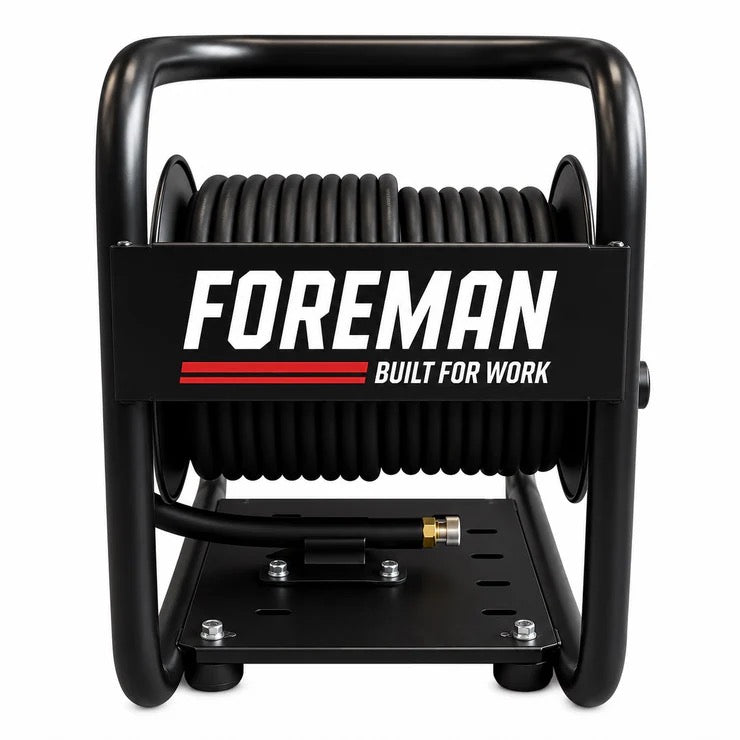

Frame Mounted Hose Reel Assembly | 30m Hose Included
Frame Mounted Hose Reel Assembly | 30m Hose Included

Frame Mounted Hose Reel Assembly | 30m Hose Included

SKU : HRA-30M-COMPLETE

£369.34 inc. VAT

£307.78 ex. VAT

Professional frame-mounted hose reel assembly supplied complete with 30m of 3/8" single-wire reinforced high-pressure hose. Fitted with a powder-coated carry frame, painted steel reel, and brass swivel assembly for professional pressure washing applications.
Dispatch: 3–5 working days to allow for order preparation and final inspection. Finance options available for eligible UK customers.
Frame Mounted Hose Reel Assembly | 30m Hose Included

Frame Mounted Hose Reel Assembly | 30m Hose Included

£369.34

Ask about Frame Mounted Hose Reel Assembly | 30m Hose Included

SPECIFICATIONS FEATURES PRODUCT OVERVIEW DELIVERY & RETURNS

TECHNICAL SPECIFICATIONS

Hose Length 30 Metres
Hose Size 3/8 Inch
Hose Construction 1 Wire Reinforced Rubber Hose
Maximum Working Pressure 250 Bar
Maximum Temperature 60°C
Frame Construction Powder-Coated Steel
Reel Construction Painted Steel
Swivel Type Brass Swivel
Inlet Connection 3/8 Inch BSP Male
Outlet Connection 3/8 Inch BSP Female
Dimensions 455 × 270 × 320 mm
Hose Included Yes

FEATURES

  • Manufactured from painted steel for durability and long service life in professional pressure washing environments.
  • Incorporates a brass swivel assembly to support smooth hose operation during winding and unwinding while helping to reduce hose twist.
  • Supplied complete with a 30m 3/8" single-wire reinforced rubber high-pressure hose assembly.
  • The complete hose reel assembly is rated to 250 bar and suitable for professional pressure washing applications.
  • Fixed frame-mounted configuration suitable for workshop, vehicle, trailer and static pressure washer installations. Supports up to 30m of 3/8" high-pressure hose included.

Product Overview

The Foreman Frame Mounted Hose Reel Assembly is specified for professional pressure washer installations requiring organised hose storage, protection, and deployment.
Constructed with a powder-coated carry frame, painted steel hose reel, and brass swivel assembly, the unit is supplied complete with 30m of 3/8" single-wire reinforced rubber high-pressure hose for straightforward installation and operation.
The assembly incorporates 3/8" BSP connections and is suitable for commercial, agricultural, industrial, fleet, workshop, and general pressure washing applications where extended working reach and reliable hose management are required.
The complete assembly is rated to 250 bar, providing a practical hose management solution for professional pressure washer systems.

DELIVERY & RETURNS

Complete machines are delivered palletised and partially assembled.

Each machine undergoes pre-delivery inspection prior to dispatch.

Delivery requires site access suitable for pallet handling.

Refer to the Delivery & Returns policy for full details.
