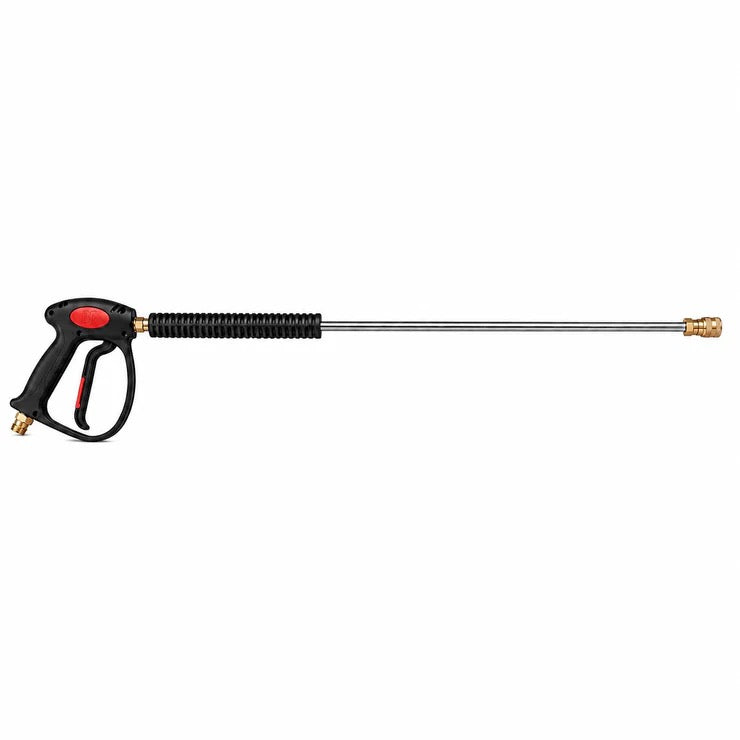

Ask about Pressure Wash Lance Assembly | MV925 Gun & AR1 Quick Release
TECHNICAL SPECIFICATIONS
| Max Pressure | 275 bar |
| Max Flow Rate | 30 L/min |
| Max Temperature | 90 C |
| Gun Model | MV925 Professional Trigger Gun |
| Gun Pressure Rating | 280 bar |
| Gun Max Flow | 30 L/min |
| Gun Inlet | M22 Male |
| Gun Outlet | 1/4 BSP Female |
| Gun Temperature Rating | 160 C |
| Internal Components | Brass and stainless steel |
| Lance Length | 900 mm |
| Lance Finish | Zinc plated |
| Coupler Model | AR1 Series Quick Release Coupler |
| Coupler Thread | 1/4 BSP Female |
| Coupler Pressure Rating | 250 bar |
| Coupler Max Flow | 40 L/min |
| Coupler Temperature Rating | 150 C |
| Coupler Body | Brass |
| Plug Size | 11.7 mm |
| Compatibility | Compatible with AR1 adaptors and quick connect pressure washer nozzles |
| Applications | Agricultural cleaning, machinery washdown, vehicle cleaning, workshop cleaning, industrial washdown and general pressure cleaning applications |
| Operating Note | Inspect lance assemblies, couplers and high-pressure components regularly during operation. |
FEATURES
-
Professional trigger gun fitted with brass and stainless-steel internal components specified for commercial pressure washer equipment. The trigger assembly is configured for professional operating environments requiring durable high-pressure control components.
-
Zinc-plated straight lance assembly supporting controlled operation and increased working reach during cleaning applications. The extended lance configuration assists operator access when cleaning machinery, equipment, and large surface areas.
-
AR1 Series quick-release outlet coupler supporting rapid nozzle connection and accessory interchange during operation. The quick-release system is compatible with AR1 adaptors and quick-connect pressure washer nozzle systems.
-
Brass and stainless-steel internal components specified for professional high-pressure cleaning environments. The internal component configuration supports durability and resistance to corrosion during routine commercial operation.
-
Specified for professional pressure washer systems operating up to 275 bar and 30 L/min. Suitable for agricultural, commercial, industrial, workshop, and machinery cleaning applications.
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
HELPFUL INFORMATION
Declaration of Conformity
📥 Download PDF
