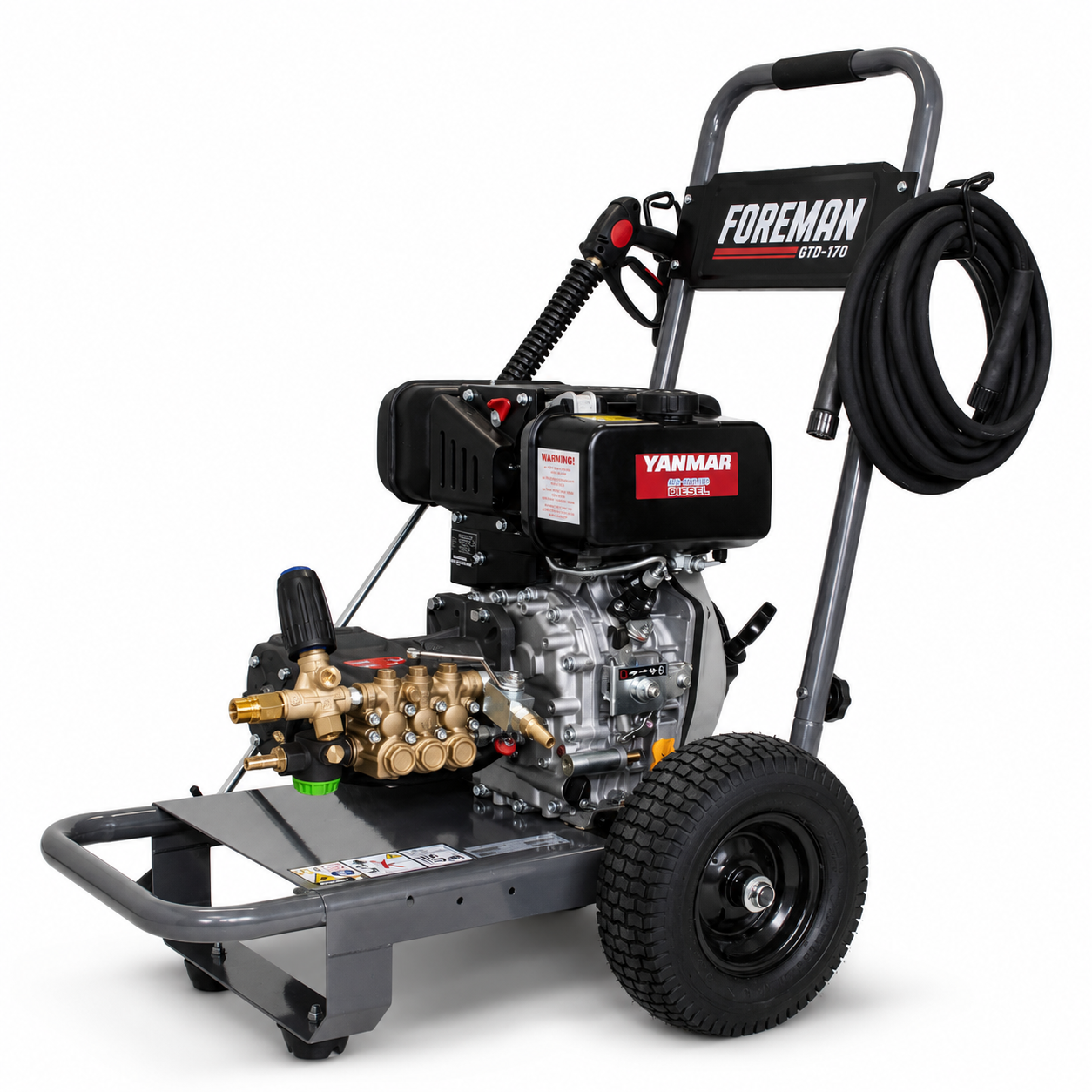

Ask about GTD-170 Diesel Pressure Washer | 170 bar
TECHNICAL SPECIFICATIONS
| Max Pressure | 170 bar (2465 psi) |
| Flow Rate | 13 L/min |
| Engine | Yanmar L70V air-cooled direct injection diesel engine |
| Pump | Interpump 58 Series triplex pump |
| Drive Type | Direct Drive |
| Pump Speed | 3400 RPM |
| Fuel Type | Diesel |
| Starting System | Manual Recoil Start |
| Fuel Tank Capacity | 3.3 L |
| Frame Type | Powder-Coated Trolley Frame |
| Wheel Size | 13 inch wheels |
| Dimensions | 855 × 625 × 1055 mm |
| Weight | 69 kg |
| Compliance | UKCA Compliant |
| Assembly | Assembled, calibrated, and pressure-tested in the United Kingdom |
| Standard Equipment | MV925 Trigger Gun & Lance |
| High-Pressure Hose | 10m Wire-Braided High-Pressure Hose |
| Suction Hose | 3m Suction Hose with Inlet Filter |
| Chemical Injection | External Chemical Injector |
| Operating Note | Performance figures are stated as maximum pressure and nominal flow rate values. Peak pressure values are not used to define continuous operating capability. |
FEATURES
-
Pump directly coupled to the engine crankshaft, creating a compact and mechanically simple drive arrangement. This configuration reduces overall component count while maintaining straightforward servicing access and transportability. Specified for routine professional cleaning applications where extended continuous operation is not the primary duty requirement.
-
Powered by a commercial-grade Yanmar L70V air-cooled direct injection diesel engine specified for professional equipment applications. The L70V platform is widely used across industrial and agricultural machinery where fuel efficiency, long operating life, and diesel-powered operation are required.
-
Fitted with an Interpump Group 58 Series triplex plunger pump configured for professional pressure cleaning applications. The triplex pump design uses serviceable internal components and separate ceramic plungers to support consistent pressure delivery and long-term maintenanceability.
-
Return-to-head unloader system regulating operating pressure during use with internal bypass recirculation during trigger-off periods. The bypass circuit redirects water internally within the pump system, supporting stable pressure control during intermittent cleaning operation. This configuration is commonly specified for routine professional cleaning applications where prolonged bypass operation is not the primary duty requirement.
-
Low-pressure downstream chemical injector enabling detergent application through the outlet circuit. The injector operates on the low-pressure side of the pump system, reducing chemical exposure within the high-pressure pump manifold.
-
Integrated priming valve fitted to the pump manifold assisting pump priming when operating from suction-fed water supplies. The system supports improved water supply stabilisation during initial startup and reduces priming difficulty when drawing from static water sources such as tanks or bowsers.
-
Heavy-duty powder-coated trolley chassis fitted with 13-inch transport wheels for movement across uneven professional working environments. The larger wheel configuration improves manoeuvrability during transport across rough ground, agricultural yards, and commercial site conditions.
-
Each machine is assembled, calibrated, and pressure-tested in the United Kingdom prior to dispatch. Final inspection includes operating verification, pressure confirmation, and general assembly checks before shipment.
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
HELPFUL INFOMATION
Declaration of Conformity
📥 Download PDF
