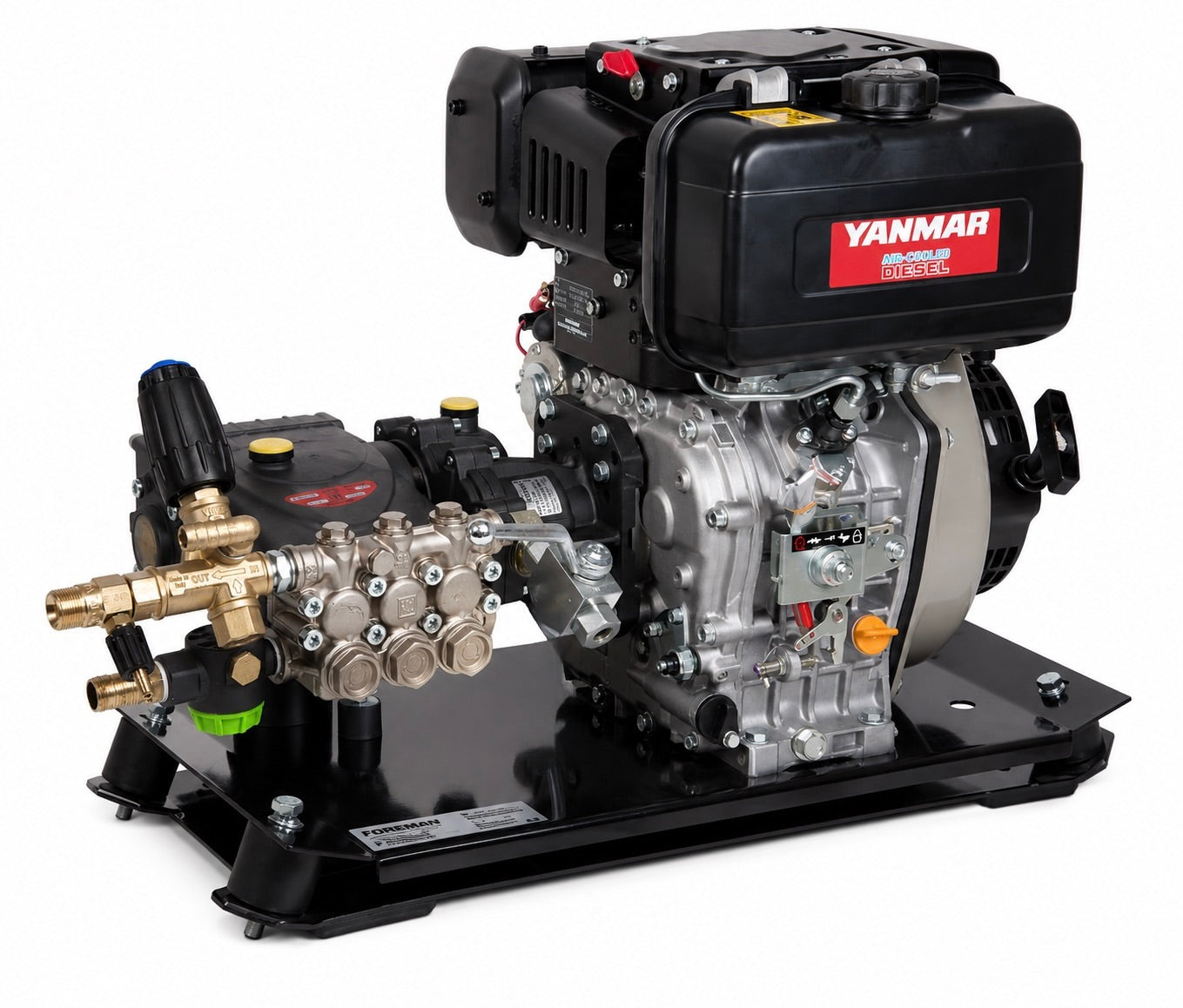

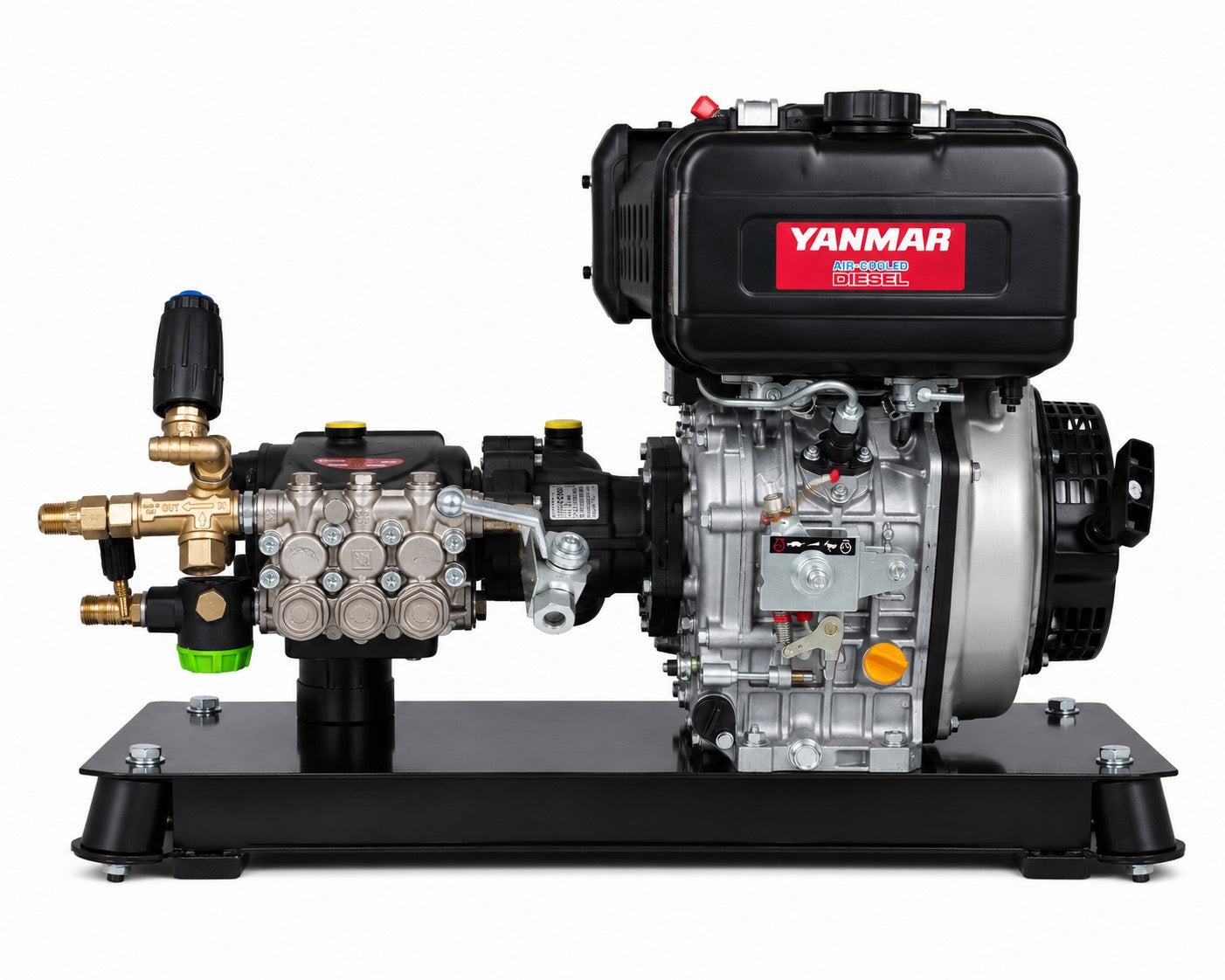

Ask about GTD-200HD Skid Diesel Pressure Washer | 190 bar
TECHNICAL SPECIFICATIONS
| Max Pressure | 190 bar (2755 psi) |
| Flow Rate | 20 L/min |
| Engine | Yanmar L100V air-cooled direct injection diesel engine |
| Pump | Interpump 59 Series triplex pump |
| Gearbox | Interpump RS500 reduction gearbox |
| Drive Type | Gearbox-Driven |
| Pump Speed | 1450 RPM |
| Fuel Type | Diesel |
| Starting System | Electric Start and Manual Recoil Start |
| Battery Supply | Electric-start variants are not supplied with battery or battery cables |
| Fuel Tank Capacity | 5.4 L |
| Unloader Type | Return-to-Tank (RTT) |
| Pressure Control | Return-to-tank unloader valve with external chemical injector |
| Frame Type | Heavy-Duty Powder-Coated Skid Frame with Anti-Vibration Isolation Mounts |
| Compliance | UKCA Compliant |
| Assembly | Assembled, calibrated, and pressure-tested in the United Kingdom |

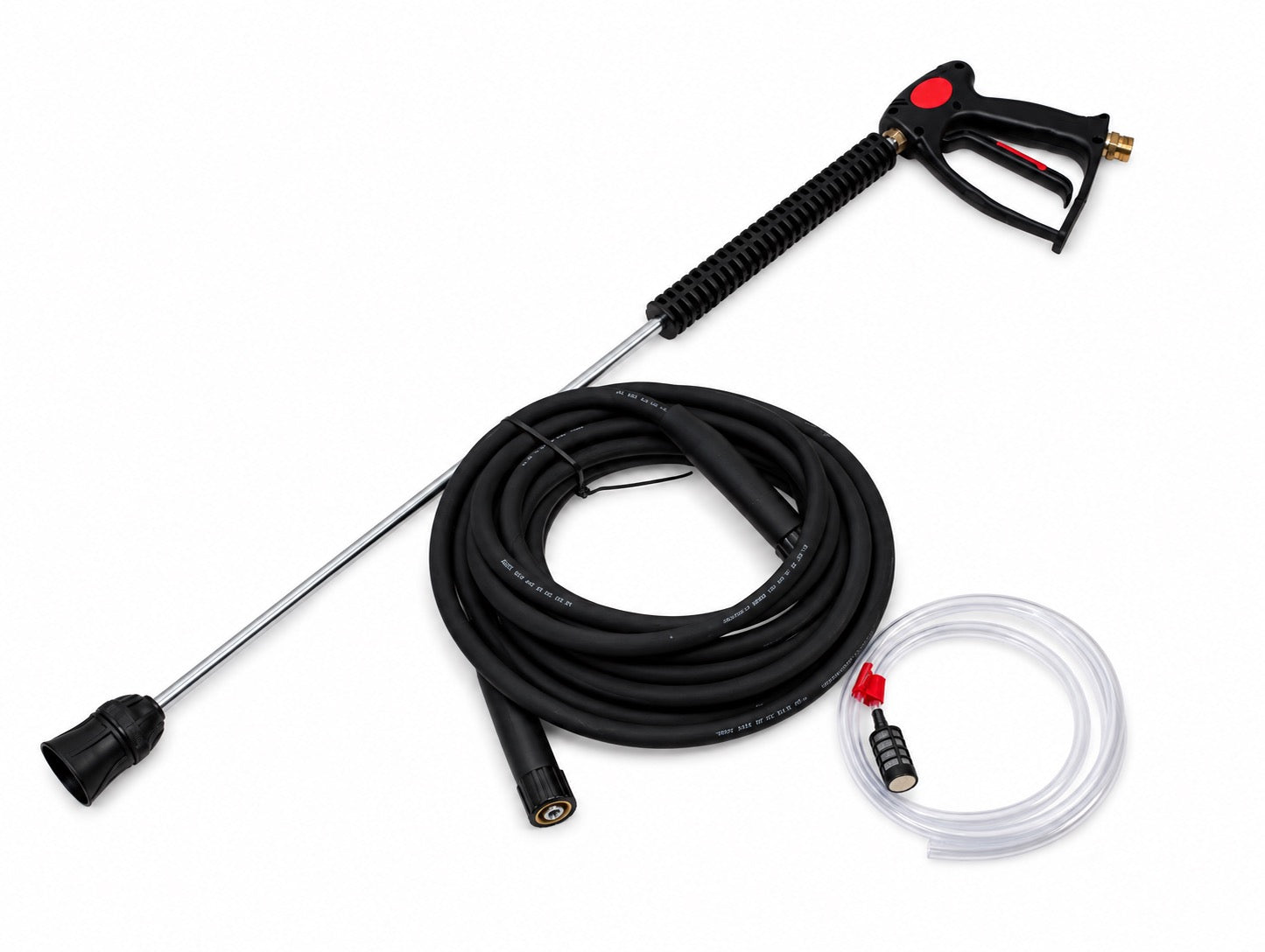

| Standard Equipment | MV925 Trigger Gun with 900mm Straight Lance |
| High-Pressure Hose | 10m Wire-Braided High-Pressure Hose |
| Suction Hose | 3m Suction Hose with Inlet Filter |
| Chemical Injection | External Chemical Injector |
| Operating Note | Performance figures are stated as maximum pressure and nominal flow rate values. Peak pressure values are not used to define continuous operating capability. |
FEATURES
-
The pump is driven through an Interpump Group RS500 reduction gearbox operating at approximately 1450 RPM. Lower pump operating speed reduces mechanical load, heat generation, and operating stress during prolonged cleaning work. This configuration is specified for professional applications involving sustained operating periods and extended duty cycles.
-
Powered by a commercial-grade Yanmar L100V air-cooled direct injection diesel engine specified for professional equipment applications. The L100V platform is widely used across industrial and agricultural machinery where higher torque output, fuel efficiency, and long operating life are required.
-
Fitted with an Interpump Group 59 Series triplex plunger pump configured for professional pressure cleaning applications. The triplex pump design uses serviceable internal components and separate ceramic plungers to support consistent pressure delivery and long-term maintenanceability.
-
Return-to-tank bypass configuration helps reduce heat build-up during trigger-off operation by recirculating bypass water back to the supply tank rather than through the pump manifold.
-
Low-pressure downstream chemical injector enabling detergent application through the outlet circuit. The injector operates on the low-pressure side of the pump system, reducing chemical exposure within the high-pressure pump manifold.
-
Integrated priming valve fitted to the pump manifold assisting pump priming when operating from suction-fed water supplies. The system supports improved water supply stabilisation during initial startup and reduces priming difficulty when drawing from static water sources such as tanks or bowsers.
-
Heavy-duty powder-coated skid frame fitted with anti-vibration isolation mounts for fixed-position and professional installation applications. The skid configuration provides a compact and structurally stable platform suited to vehicle mounting, trailer integration, and static installation environments.
-
Each machine is assembled, calibrated, and pressure-tested in the United Kingdom prior to dispatch. Final inspection includes operating verification, pressure confirmation, and general assembly checks before shipment.
ACCESSORIES
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
