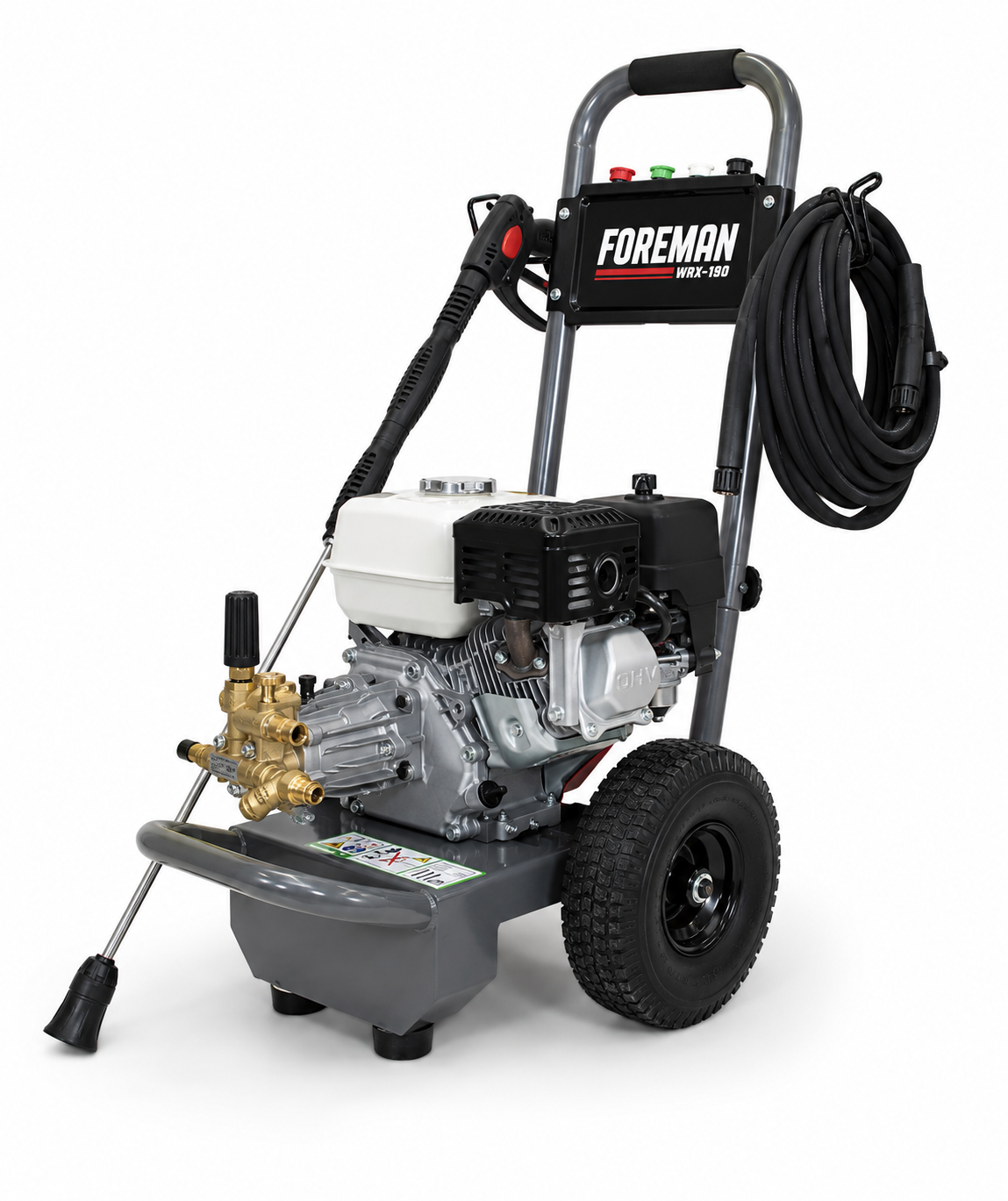

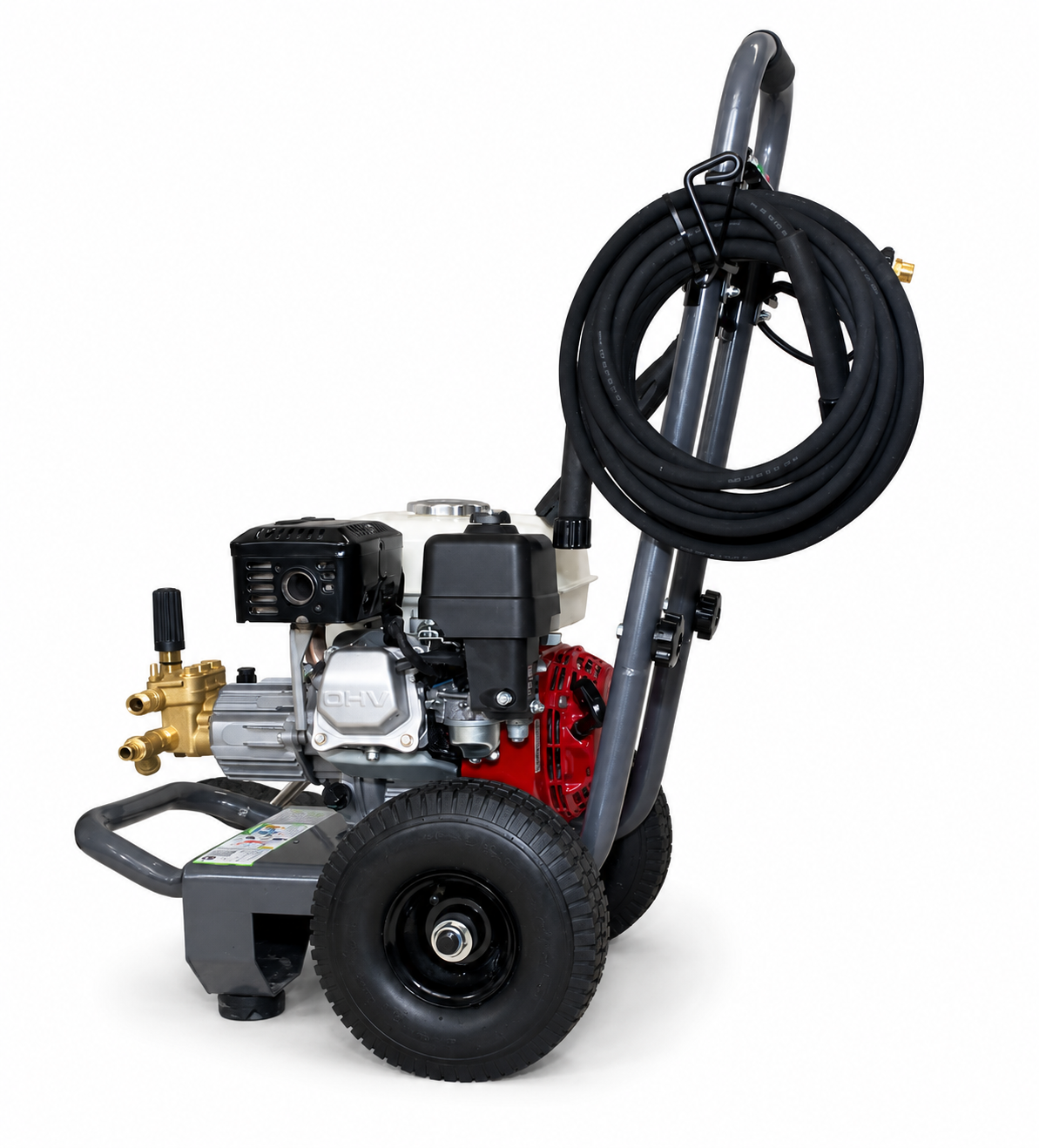

Ask about WRX-190 Petrol Pressure Washer | 130 Bar
TECHNICAL SPECIFICATIONS
| Max Pressure | 186 bar (2700 psi) |
| Flow Rate | 12 L/min |
| Engine | Honda GX200 petrol engine with Oil Alert |
| Pump | Annovi Reverberi triplex pump |
| Drive Type | Direct Drive |
| Pump Speed | 3400 RPM |
| Fuel Type | Unleaded Petrol |
| Starting System | Manual Recoil Start |
| Fuel Tank Capacity | 3.1 L |
| Unloader Type | Return-to-Head (RTH) |
| Pressure Control | Return-to-head unloader valve with low-pressure downstream chemical injection |
| Frame Type | Powder-Coated Trolley Frame |
| Wheel Size | 10 inch wheels |
| Compliance | UKCA Compliant |
| Assembly | Assembled, calibrated, and pressure-tested in the United Kingdom |

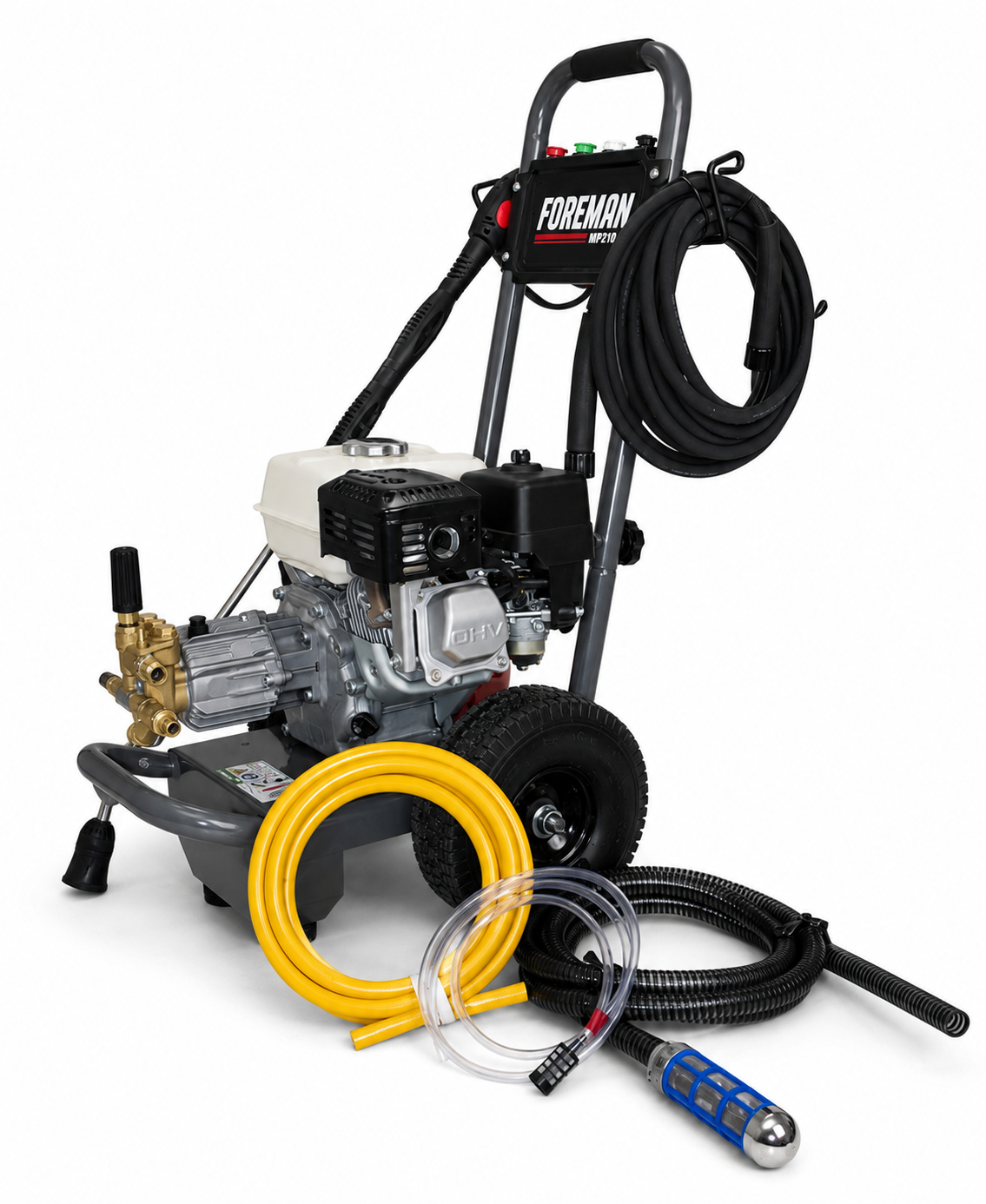

| Standard Equipment | MV925 Trigger Gun & Lance |
| High-Pressure Hose | 10m Wire-Braided High-Pressure Hose |
| Suction Hose | 3m Suction Hose with Inlet Filter |
| Chemical Injection | Low-Pressure Chemical Injector |
| Operating Note | Performance figures are stated as maximum pressure and nominal flow rate values. Peak pressure values are not used to define continuous operating capability. |
FEATURES
-
Pump directly coupled to the engine crankshaft, creating a compact and mechanically simple drive arrangement. This configuration reduces overall component count while maintaining straightforward servicing access and transportability. Specified for routine professional cleaning applications where extended continuous operation is not the primary duty requirement.
-
Powered by a commercial-grade Honda GX200 petrol engine with integrated Oil Alert protection system. The GX200 platform is widely specified across professional industrial and construction equipment due to its established reliability, service support, and parts availability.
-
Fitted with an Annovi Reverberi triplex plunger pump configured for professional pressure cleaning applications. The triplex pump design uses serviceable internal components and separate ceramic plungers to support consistent pressure delivery and long-term maintenanceability.
-
Return-to-head unloader system regulating operating pressure during use with internal bypass recirculation during trigger-off periods. The bypass circuit redirects water internally within the pump system, supporting stable pressure control during intermittent cleaning operation. This configuration is commonly specified for routine professional cleaning applications where prolonged bypass operation is not the primary duty requirement.
-
Low-pressure downstream chemical injector enabling detergent application through the outlet circuit. The injector operates on the low-pressure side of the pump system, reducing chemical exposure within the high-pressure pump manifold.
-
Compact powder-coated trolley chassis fitted with 10-inch transport wheels for professional site movement and general handling. The frame structure supports machine stability, component protection, and servicing accessibility while maintaining a compact overall footprint.
-
Each machine is assembled, calibrated, and pressure-tested in the United Kingdom prior to dispatch. Final inspection includes operating verification, pressure confirmation, and general assembly checks before shipment.
DELIVERY & RETURNS
Delivered palletised and partially assembled.
Each machine undergoes Pre-Delivery Inspection prior to dispatch.
Delivery requires site access suitable for pallet handling.
Refer to the Delivery & Returns policy for full details.
HELPFUL INFOMATION
Declaration of Conformity
📥 Download PDF
